Excellent quality Condenser Water Pipe Insulation - Kingflex Self Adhesive Rubber Foam Sheet – Kingflex Detail:

Kingflex Self Adhesive Rubber Foam Sheet

Kingflex self adhesive foam insulation roll is an environmental protection insulation material with closed cell structure with self-adhesive backed. It is manufactured without the use of CFC’S, HFC’S OR HCFC’S. It is also formaldehyde free, low VOCS, fiber free, dust free and resistant to mold and mildew.

♦ excellent thermal insulation- very low thermal conductivity

♦ excellent acoustic insulation- can reduce noise and sound transmitting

♦ moisture resistant, fire resistant

♦ good strength to resist deformation

♦ closed cell structure

♦easy to install

♦ BS476 / UL94/ DIN5510/ ASTM/ CE/ REACH/ ROHS/ GB CERTIFIED

Standard Dimension

Kingflex Dimension
Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	*Size(LW)**	㎡/Roll	*Size(LW)**	㎡/Roll	*Size(LW)**	㎡/Roll
1/4″	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8″	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2″	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4″	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1″	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4″	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2″	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2″	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Technical Data Sheet

Kingflex Technical Data
Property	Unit	Value	Test Method
Temperature range	°C	(-50 – 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 BS 4370 Part 2 1973
μ	-	≥10000
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index		25/50	ASTM E 84
Oxygen Index		≥36	GB/T 2406,ISO4589
Water Absorption,%by Volume	%	20%	ASTM C 209
Dimension Stability		≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Production Process

1638514239(1)

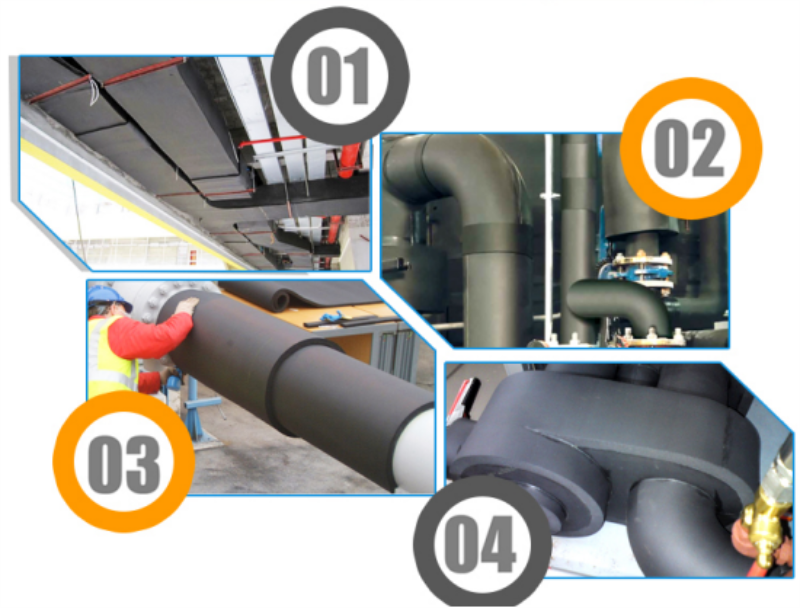

Application

1639731058(1)

Certification

sdsadasdas (1)
